Exploring the Seeed Studio WIO WM1110 Tracker DEV KIT
Published by Vivian van Zyl in Meshtastic the 12/17/2024 at 05:48 pm
The Seeed Studio WIO WM1110 Tracker DEV KIT is an innovative device that integrates various features for outdoor tracking. In this post, we’ll dive into its components, modifications, and some challenges faced while using it. From the GPS capabilities to battery management, let’s take a closer look at this unique tracker.
Table of Contents
- Overview of the WIO WM1110 Tracker
- Assembly and Modifications
- Battery Management Issues
- GPS Performance
- Limitations of the Internal Antenna
- Battery Life and Monitoring
- Final Assembly and Functionality
- Frequently Asked Questions
Overview of the WIO WM1110 Tracker
The WIO WM1110 is a versatile board designed to run various applications, including the Meshtastic firmware. It comes equipped with a GPS unit, an LED display, and a rechargeable battery. This combination makes it an appealing option for those looking to develop tracking solutions.

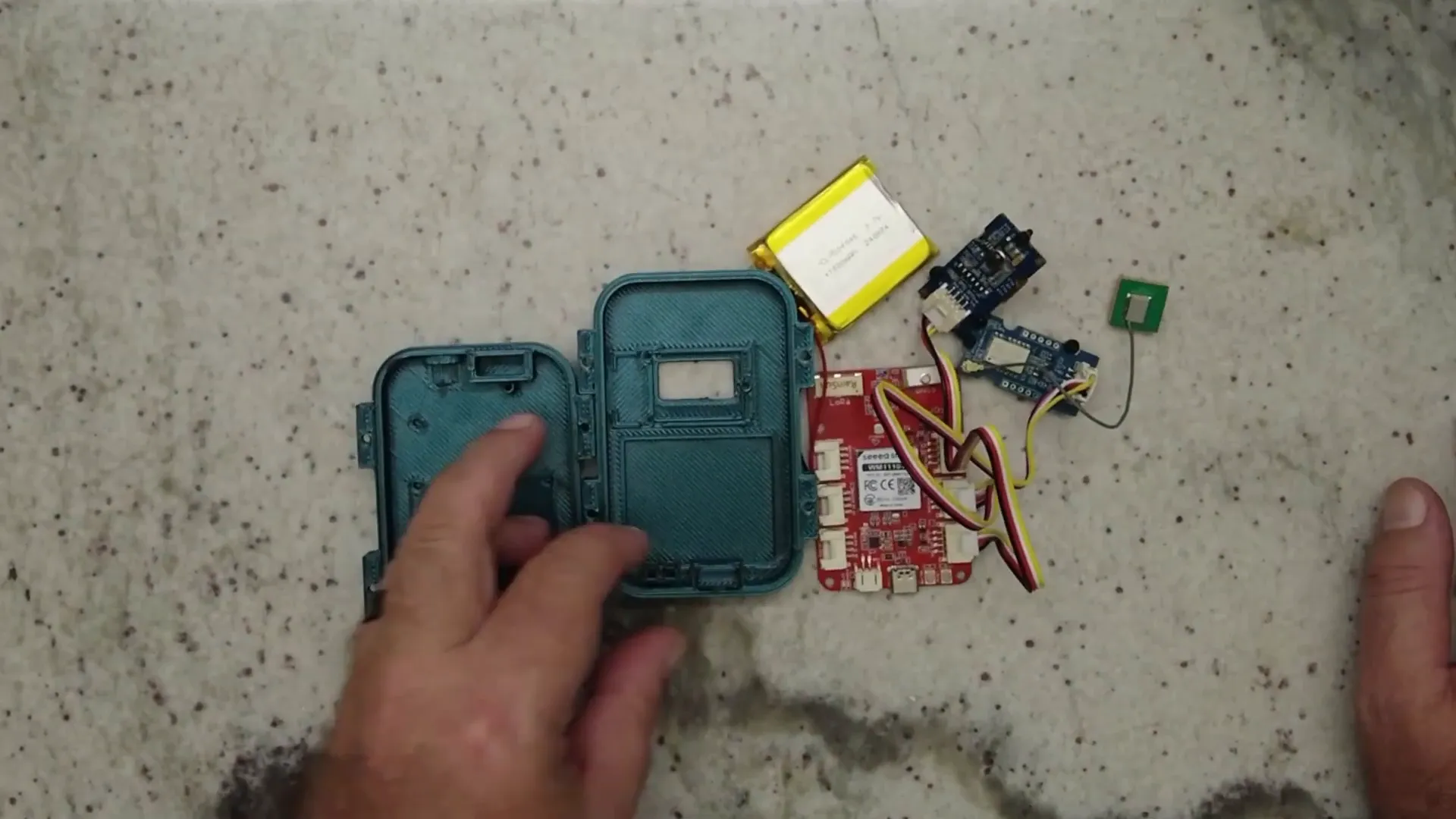

Assembly and Modifications
When setting up the WIO WM1110, some modifications may enhance its usability. The original case required adjustments to suit the needs of the user better. Here are some key changes made during the assembly:
- Changed the hinge tightening mechanism to use 3M screws for better stability.
- Removed the original side switch and relocated it to the bottom for easier access.
- Added two buttons on the front for reset and function, enhancing user interaction.
These modifications allow for a more user-friendly experience and improve the overall functionality of the device.

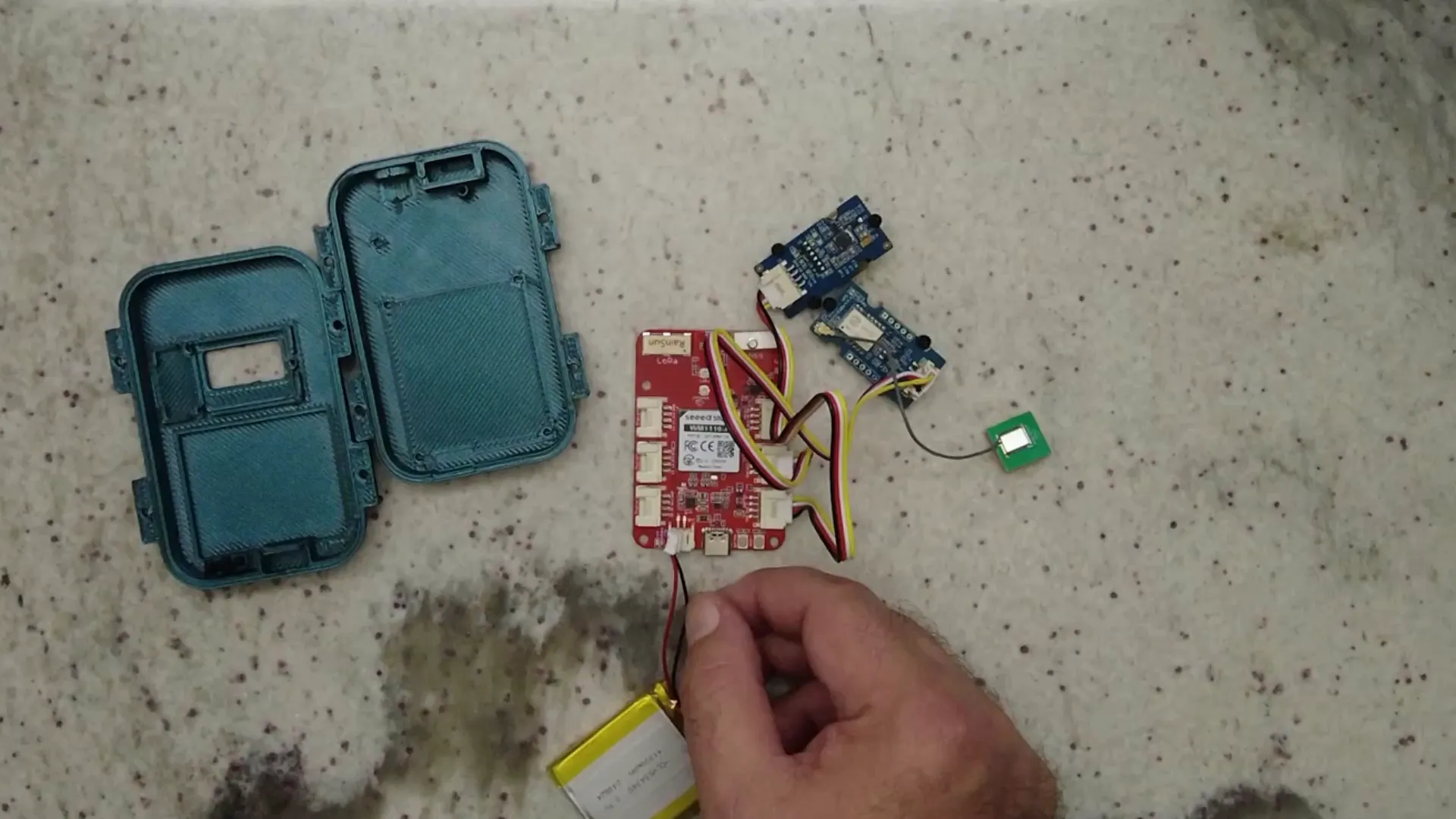

Battery Management Issues
One of the significant challenges with the WIO WM1110 is the battery management system. The device requires a physical switch to turn off the battery, as it does not power down completely when the function button is long-pressed. This can lead to battery drainage if not addressed properly.
To mitigate this issue, a simple on/off switch was added. This allows the user to manage power efficiently, ensuring that the device does not run out of battery when not in use.

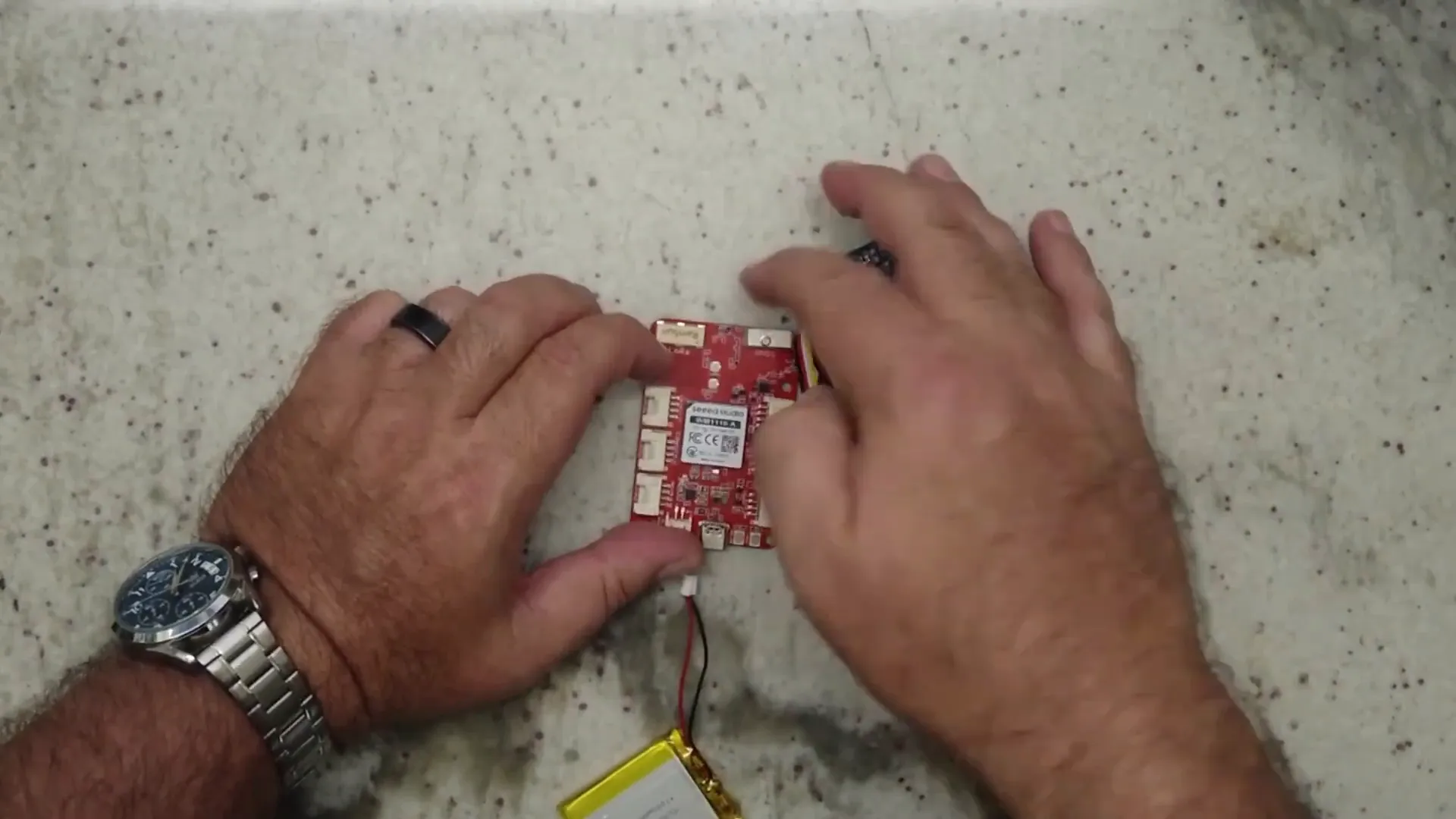

GPS Performance
The WIO WM1110 Tracker boasts an onboard GPS unit that performs impressively. In testing, it has been reported to connect to as many as 25 satellites, providing reliable and accurate location data.
In contrast, other cheaper GPS units may only connect to six to nine satellites, making the WIO WM1110 a more dependable choice for tracking applications. The accuracy of the GPS is a notable advantage for outdoor activities.

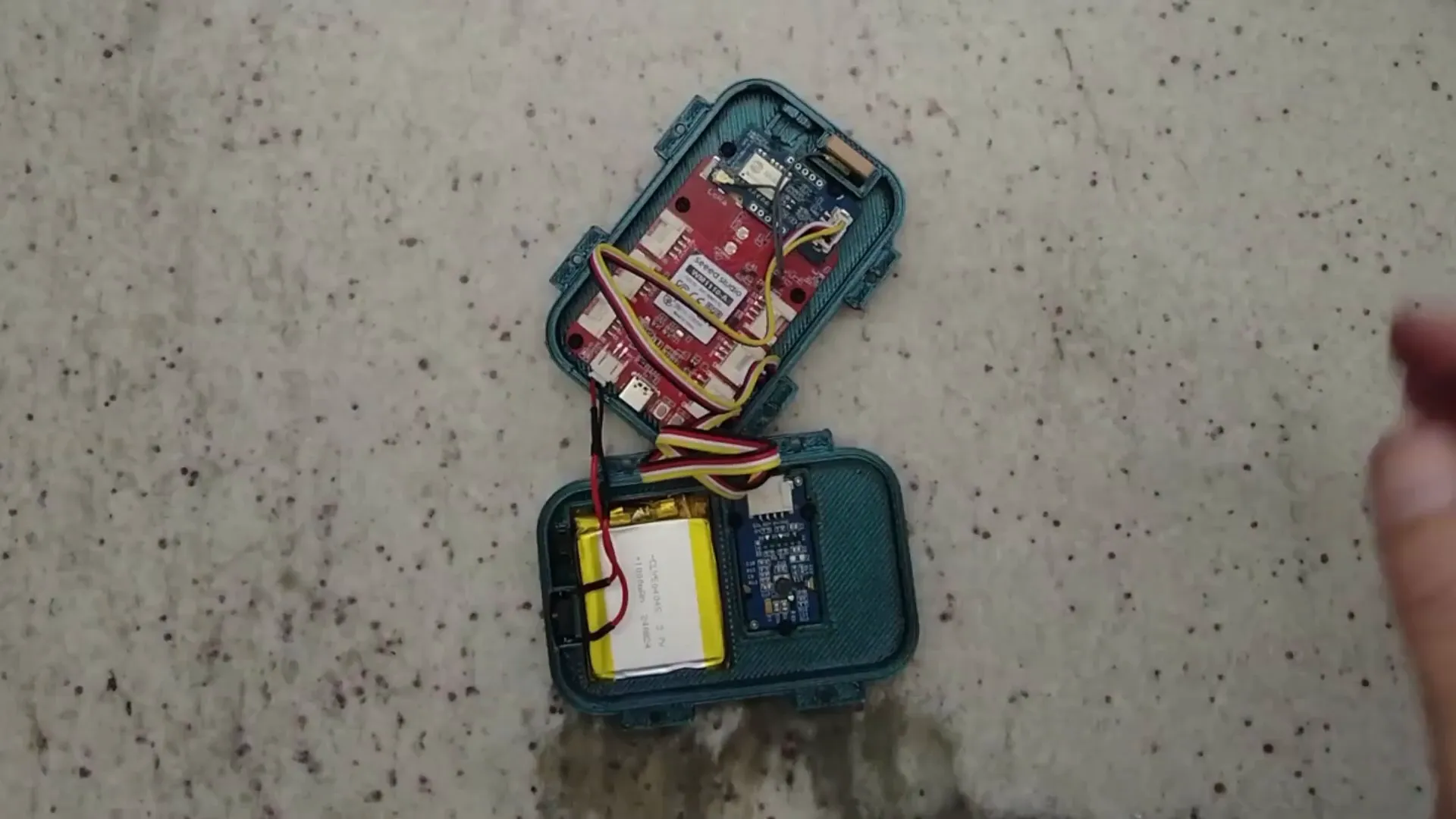

Limitations of the Internal Antenna
While the WIO WM1110 is equipped with a place for an external LoRa antenna, the device primarily relies on its internal antenna. This can limit the range and effectiveness of LoRa communications. There are hacks available that involve swapping resistors to connect the external antenna, but these modifications may not be feasible for all users due to their complexity.
For users looking to maximize their device's potential, exploring these modifications may be worthwhile, but caution is advised due to the intricate nature of the components involved.

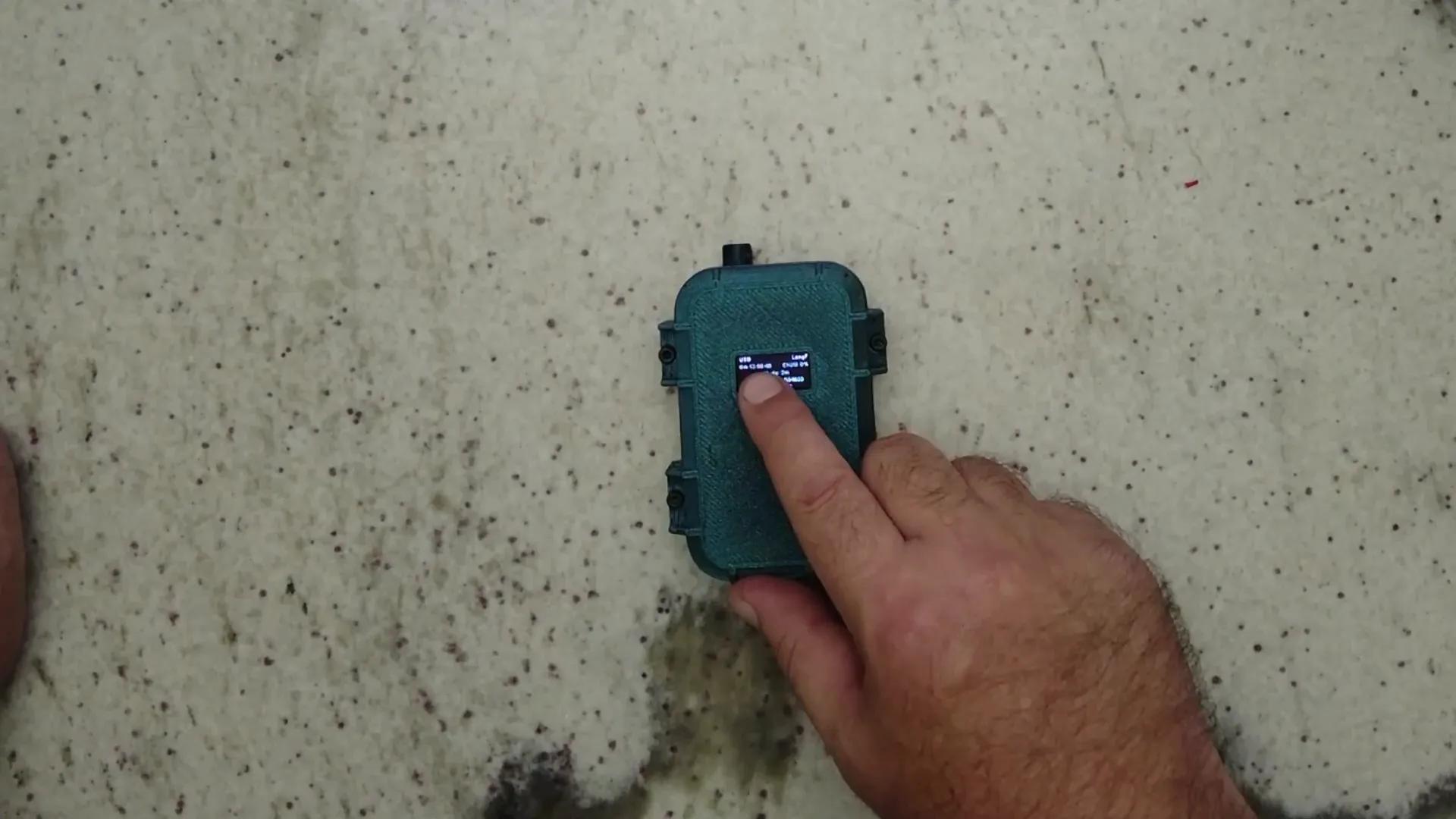

Battery Life and Monitoring
The WIO WM1110 Tracker operates with a 1000 mAh battery, providing approximately 12 hours of usage on a single charge. However, a notable drawback is the lack of a battery level indicator within the Meshtastic firmware. The device only displays a USB connection status, leaving users uncertain about the remaining battery life.
Finding a solution to monitor battery levels effectively is essential for users who rely on the device for extended outdoor activities. It may require further firmware updates or external monitoring solutions to address this limitation.

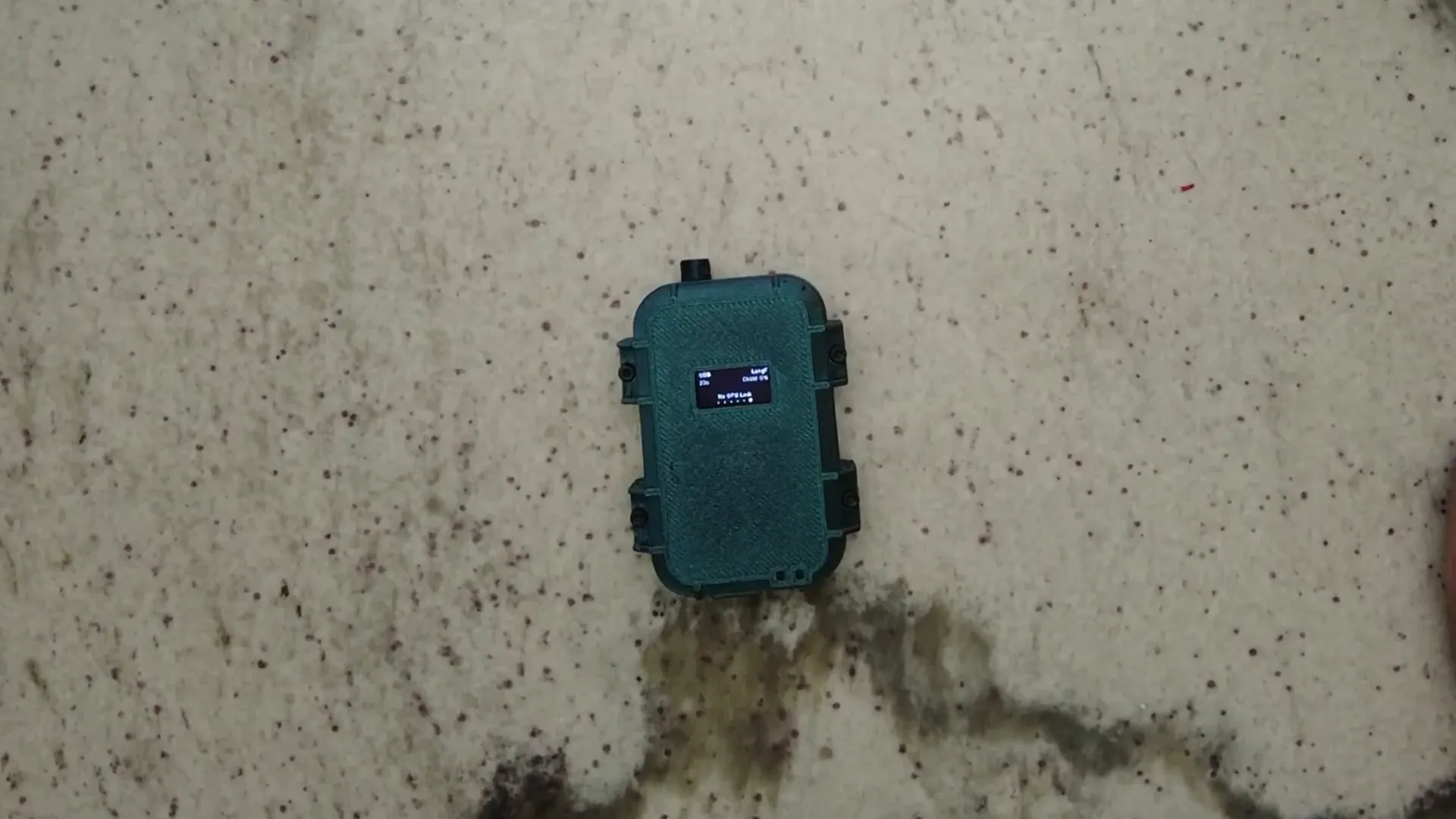

Final Assembly and Functionality
After completing the modifications and assembly, the final unit is compact and functional. The device features a power button, reset button, and USB port for charging. The LCD display allows users to view GPS connections and other relevant information.
Despite the challenges faced, the WIO WM1110 Tracker serves as an effective tracking solution with its accurate GPS capabilities and customizable features. The enhancements made during assembly significantly improve its usability, making it a worthy option for developers and outdoor enthusiasts alike.
Frequently Asked Questions
What is the battery life of the WIO WM1110 Tracker?
The WIO WM1100 Tracker has a battery life of approximately 12 hours with a 1000 mAh battery.
Can I use an external LoRa antenna with the WIO WM1110?
Yes, but the device primarily uses its internal antenna. There are modifications available to connect an external antenna, but they may require advanced skills.
How can I monitor the battery level on the WIO WM1110 Tracker?
Currently, the Meshtastic firmware does not provide a battery level indicator. Users may need to explore additional firmware options or external solutions for monitoring battery levels.
Is the GPS performance reliable?
Yes, the GPS unit on the WIO WM1110 Tracker is highly reliable, often connecting to 25 satellites for accurate positioning.
Where can I find more information on related products?
For more information on similar devices, check out the following links:
Thank you for exploring the Seed Studio WIO WM1110 Tracker with us! Stay tuned for more updates and discussions on innovative tracking solutions.
