Meshtastic LoRa T096 Development Board, nRF52840 SX1262 Supports LoRa Bluetooth Integrated L1+L5 GNSS, Compatible with MeshCore LoRaWAN Arduino, Ultra-Low Power for Off-Grid Communication Tracker V2 with nRF52840

Description of the article « Meshtastic LoRa T096 Development Board, nRF52840 SX1262 Supports LoRa Bluetooth Integrated L1+L5 GNSS, Compatible with MeshCore LoRaWAN Arduino, Ultra-Low Power for Off-Grid Communication Tracker V2 with nRF52840 »

【28dBm HIGH POWER & ULTRA-LONG RANGE】 Stop struggling with weak signals and dropped nodes. While standard LoRa devices often suffer from limited signal, our Heltec T096 integrates a powerful Power Amplifier (PA), delivering a maximum 28±1dBm output. Combined with the SX1262 chip, it ensures significantly longer communication range and superior signal stability for Meshtastic networks even in dense environments
【MULTI-SYSTEM GNSS PRECISE POSITIONING】 Equipped with the high-performance UC6580 GNSS chip, this tracker supports GPS, GLONASS, BDS (BeiDou), Galileo, NAVIC, and QZSS. Whether you are tracking assets or personnel in remote areas, the integrated LDS antenna provides reliable, multi-constellation satellite locking with higher sensitivity and faster time-to-first-fix (TTFF) than conventional ceramic antennas

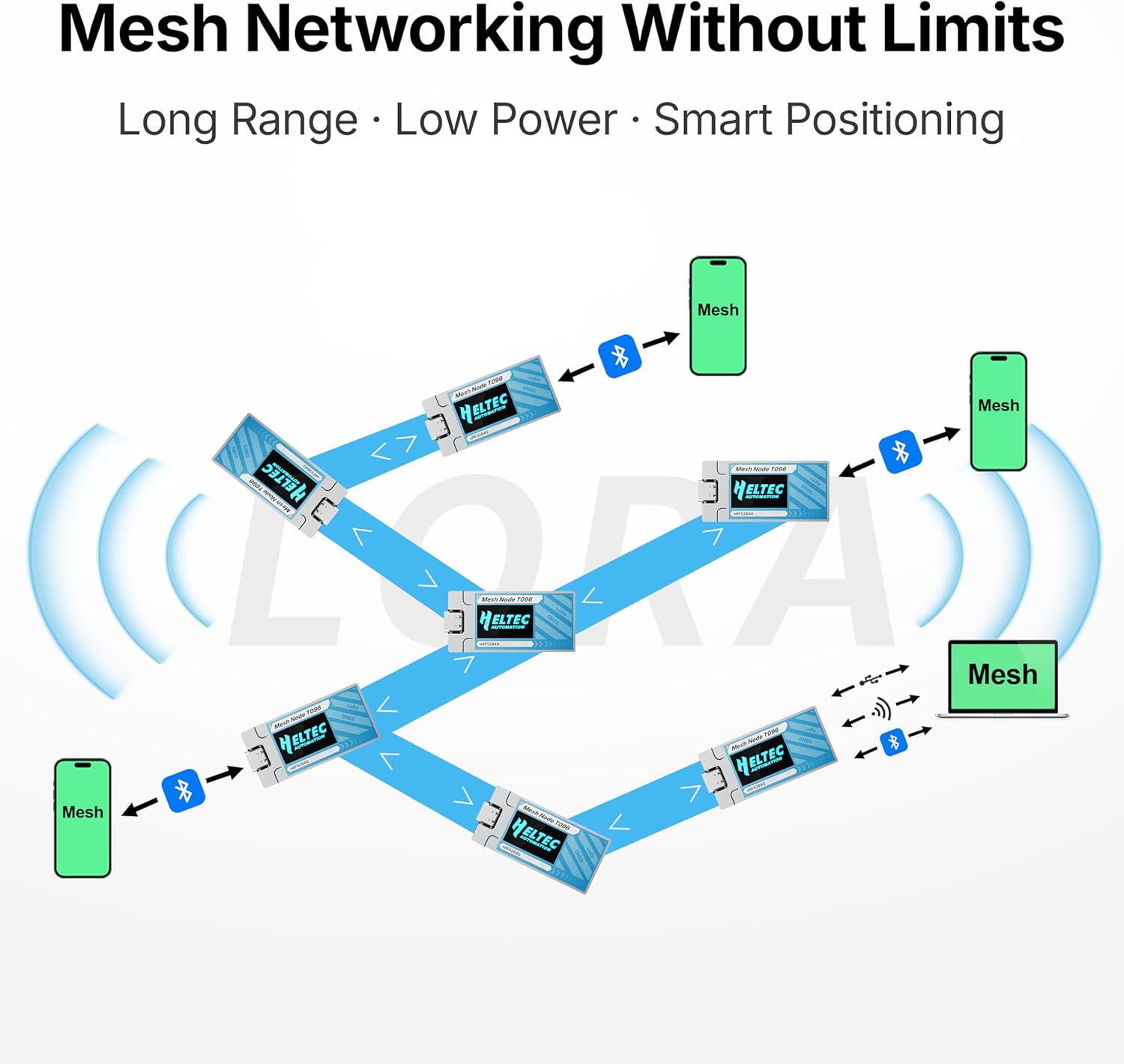

【MESHTASTIC & LORAWAN READY】 Fully compatible with open-source projects including Meshtastic, MeshCore, and standard LoRaWAN protocols. This nRF52840 based node serves as a versatile backbone for off-grid messaging, outdoor adventure communication, or decentralized local networks. It bridges the gap between Bluetooth 5 (LE) and LoRa for seamless cross-protocol connectivity
【ULTRA-LOW POWER & SOLAR READY】 Optimized for long-term off-grid deployment, the nRF52840 MCU delivers extreme efficiency with a sleep current as low as 12μA—outperforming ESP32 alternatives. Includes an integrated Type-C port and a 1.25-2P solar panel connector for continuous, maintenance-free operation in the wild

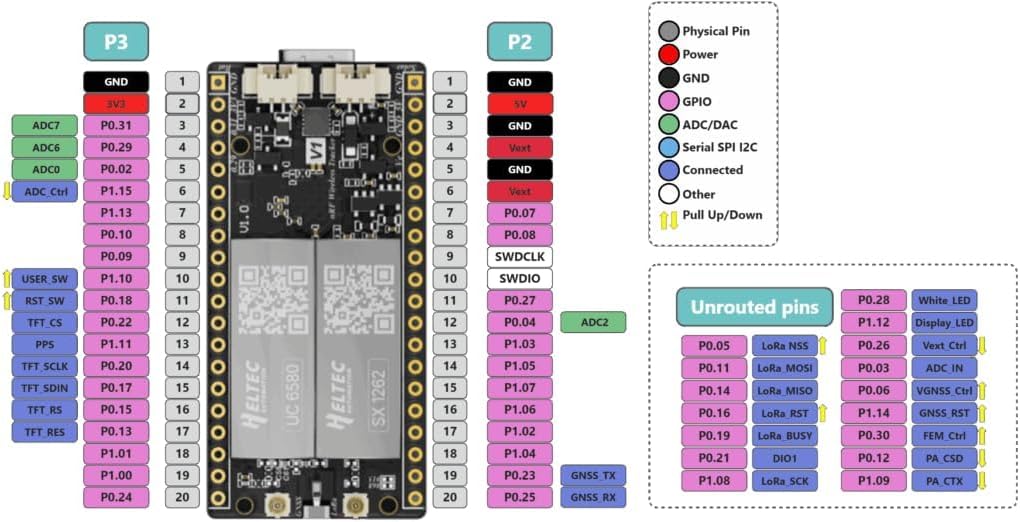

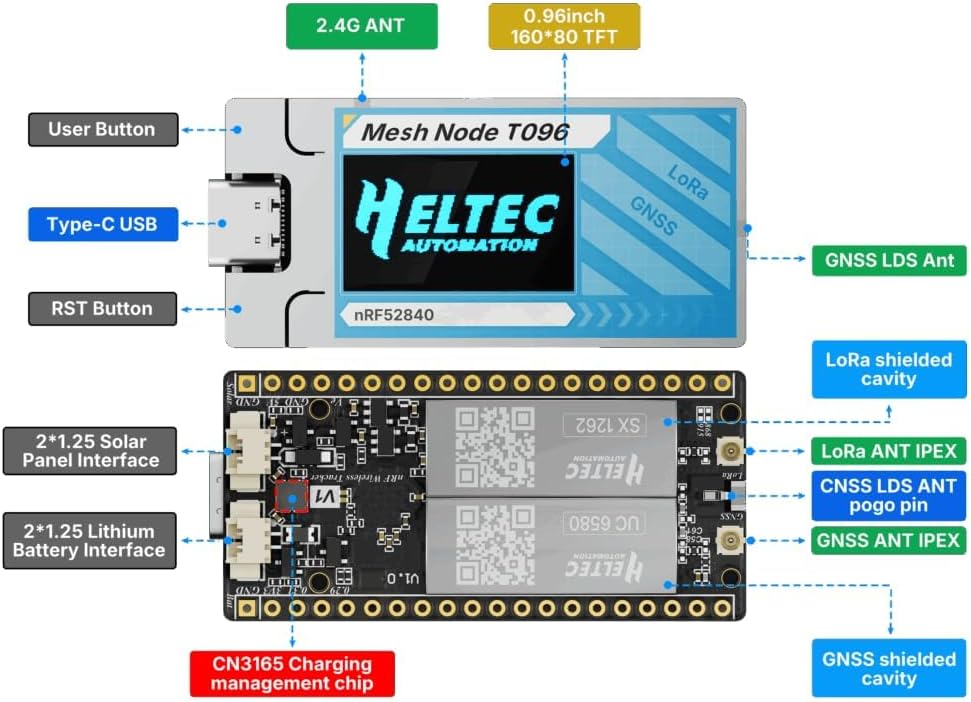

【DEVELOPER-CENTRIC & RICH ECOSYSTEM】 Designed for makers and engineers. Unlike "closed" tracker cards, our V2 provides 2*18 pin headers, Type-C USB, and comprehensive SDK support for Arduino, ESP32-IDF, PlatformIO, and MicroPython. With built-in Bluetooth and rich hardware resources (ADC, UART, I2C, SPI), it’s the ultimate development platform for custom LoRa IoT solutions
【NOTE】 - Complete 'User Manual (PDF)' with diagrams is available under ‘Safety and product resources’ section on this page.
